Double Action Pneumatic Actuator
>

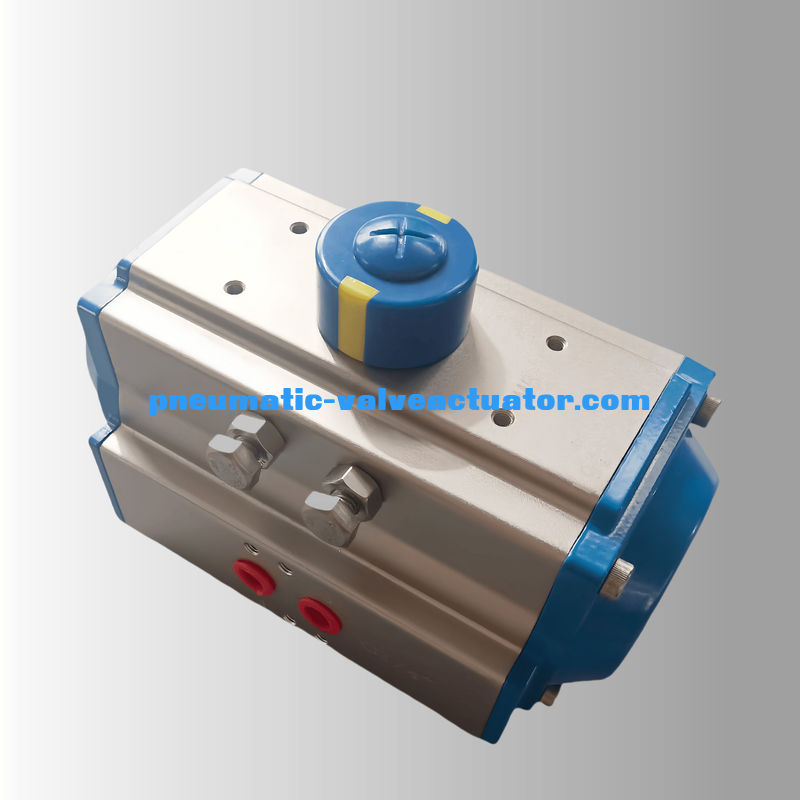

Dual Action 75mm Aluminum Alloy Rack and Pinion Pneumatic Actuator
|
Dual Action 75mm Aluminum Alloy Rack and Pinion Pneumatic Actuator
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Double Action Single Action
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Blue,gray,according To Customer's Requirements,customized
Size:
75mm
Highlight:
Pneumatic Valve Actuator 75mm Size
,Dual Action Rack And Pinion Actuator
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description
Dual Action Rack And Pinion Actuator Aluminum Alloy Pneumatic Valve Actuator 75mm Size
Product Specifications
Applications
High-performance pneumatic actuator designed for precise valve control in industrial applications including flammable, corrosive, dusty, strong magnetic field, radiation, and vibration conditions. Ideal for:
- Electric power plants
- Petrochemical facilities
- Metallurgical operations
- Oil and gas processing
- Water treatment plants
- Chemical processing
- Mining operations
- Food and pharmaceutical production
AT075D Double Effect Rack And Pinion Pneumatic Valve Actuators
| Attribute | Value |
|---|---|
| Type | Double Action Single Action |
| Material | Aluminum Alloy |
| Structure | Rack & Pinion |
| Application | Automatic control valve |
| Power | Pneumatic |
| Temperature | Normal Temperature, Low Temperature, High Temperature |
| Media | Hydraulic oil or water |
| Color | Blue, gray, according to customer's requirements, customized |
| Size | 75mm |
Technical Specifications
- Material: Extruded Aluminum alloy
- Rotary Angle: 0~90 degree
- Structure: Rack and pinion rotary actuator
- Working Pressure: 2~8bar
- Surface Treatment: Hard anodizing
- Working Temperature:
- Normal: -20ºC(-4°F) ~ 80ºC (+176°F)
- High: -15ºC(+5°F) ~ 150ºC (+302°F)
- Low: -40ºC(-104°F) ~ 80ºC (+176°F)
- Connection: NAMUR, ISO5211 and DIN3337
- Application: Ball valve, butterfly valve, and rotary machine
- Color Options: Grey, black, sky blue, dark blue, red, orange
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4 " |
