Double Action Pneumatic Actuator
>
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
|
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
| Place of Origin | China |
| Brand Name | OEM |
| Certification | CE,ATEX,ISO9001 |
| Model Number | AT32-AT400 |
Product Details
Type:
Double Action Spring Return
Material:
Aluminum Alloy
Structure:
Rack & Pinion
Application:
Automatic Control Valve
Power:
Pneumatic
Temperature:
Normal Temperature,Low Temperature,High Temperature
Media:
Hydraulic Oil Or Water
Color:
Red.blue,gray,according To Customer's Requirements,customized
Size:
32mm To 400mm
Highlight:
90 degree pneumatic actuator
,double action quarter-turn actuator
,pneumatic actuator AT040
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
10-2000
Packaging Details
Foam+Carton Box+Wooden Case
Delivery Time
3-7 days
Payment Terms
T/T
Supply Ability
1000pcs per day
Product Description

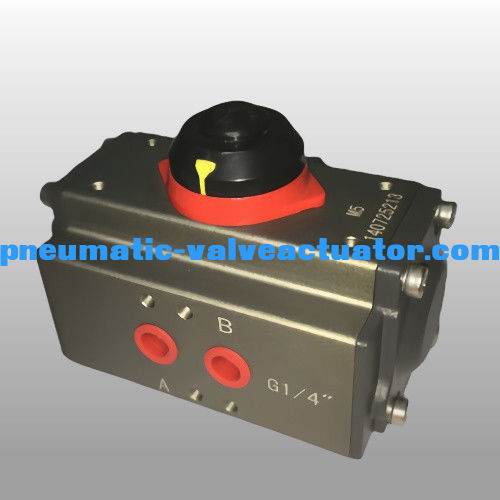

Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Product Specifications
90° Turn Pneumatic Actuator For Valves Double Action DA Silver Body Pneumatic Actuator
| Attribute | Value |
|---|---|
| Type | Double action spring return |
| Material | Aluminum Alloy |
| Structure | Rack & Pinion |
| Application | Automatic control valve |
| Power | Pneumatic |
| Temperature | Normal Temperature, Low Temperature, High Temperature |
| Media | Hydraulic oil or water |
| Color | Red, blue, gray, or customized per customer requirements |
| Size | 32mm to 400mm |
Key Features:
- Material: Extruded Aluminum alloy
- Rotary Angle: 0~90 degree ±5°
- Structure: Rack and pinion rotary actuator
- Working Pressure: 2~8bar
- Surface Treatment: Hard anodizing
- Working Temperature Ranges:
- Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
- High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
- Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
- Connection: NAMUR, ISO5211 and DIN3337
- Application: ball valve, butterfly valve, and rotary machine
- Endcap Color options: grey, black, sky blue, dark blue, red, orange
AT Series Pneumatic Actuator Construction
- Indicator: Position indicator with NAMUR for easy mounting of accessories
- Pinion: High-precision nickel alloy steel, compliant with ISO5211, DIN3337, NAMUR standards
- Actuator Body: Extruded aluminum alloy ASTM6005 with various surface treatment options
- End Caps: Die-casting aluminum with powder polyester paint or other treatments
- Pistons: Twin rack pistons with symmetric mounting and reversible rotation
- Travel Adjustment: External stop adjustment bolts for precise 5° adjustment
- Springs: Preloaded coating springs for corrosion resistance and customizable torque
- Bearings & Guides: Low-friction, long-life compound material
- O-rings: NBR rubber for standard temperatures, viton/silicone for extreme conditions
Pneumatic Actuator Dimensions
| Model | A | B | C | D | H × I | G | N | J | K | L | M | Air connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ATO32 | 110 | 45 | 45 | 20 | 50 ×25 | 12 | 9 | Æ36 | M5 ×7.5 | G1/8" | ||
| AT040 | 122 | 60 | 65 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT052 | 147 | 72 | 72 | 20 | 80 ×30 | 14 | 11 | Æ50 | Æ36 | M6 ×10 | M5 ×7.5 | NAMUR G1/4" |
| AT063 | 172 | 88 | 83 | 20 | 80 ×30 | 18 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT075 | 184 | 100 | 95 | 20 | 80 ×30 | 20 | 14 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT083 | 204 | 109 | 103 | 20 | 80 ×30 | 21 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT092 | 262 | 117 | 109 | 20 | 80 ×30 | 22 | 17 | Æ70 | Æ50 | M8 ×13 | M6 ×10 | NAMUR G1/4" |
| AT105 | 268 | 133 | 121 | 20 | 80 ×30 | 26 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT125 | 301 | 155 | 143 | 20 | 80 ×30 | 27 | 22 | Æ102 | Æ70 | M10 ×16 | M8 ×13 | NAMUR G1/4" |
| AT140 | 394 | 173 | 152 | 20 | 80 ×30 | 32 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT160 | 458 | 198 | 174 | 20 | 80 ×30 | 34 | 27 | Æ125 | Æ102 | M12 ×20 | M10 ×16 | NAMUR G1/4" |
| AT190 | 528 | 232 | 206 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT210 | 532 | 257 | 226 | 30 | 130 ×30 | 40 | 36 | Æ140 | M16 ×24 | NAMUR G1/4" | ||
| AT240 | 660 | 291 | 260 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/4" | ||
| AT270 | 740 | 330 | 294 | 30 | 130 ×30 | 50 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT300 | 798 | 354 | 336 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT350 | 880 | 408 | 385 | 30 | 130 ×30 | 60 | 46 | Æ165 | M20 ×25 | NAMUR G1/2" | ||
| AT400 | 950 | 464 | 516 | 30 | 130 ×30 | 60 | 55 | Æ254 | Æ165 | 8-M16 ×25 | M20 ×25 | NAMUR G1/2" |
